01. Architects:
- Set more consistent floor plans across levels and drawing sets.
- Adjust view ranges visually instead of relying on trial and error.
- Apply the same changes across multiple plan views faster.
A Visual Editor for Revit Plan View Ranges

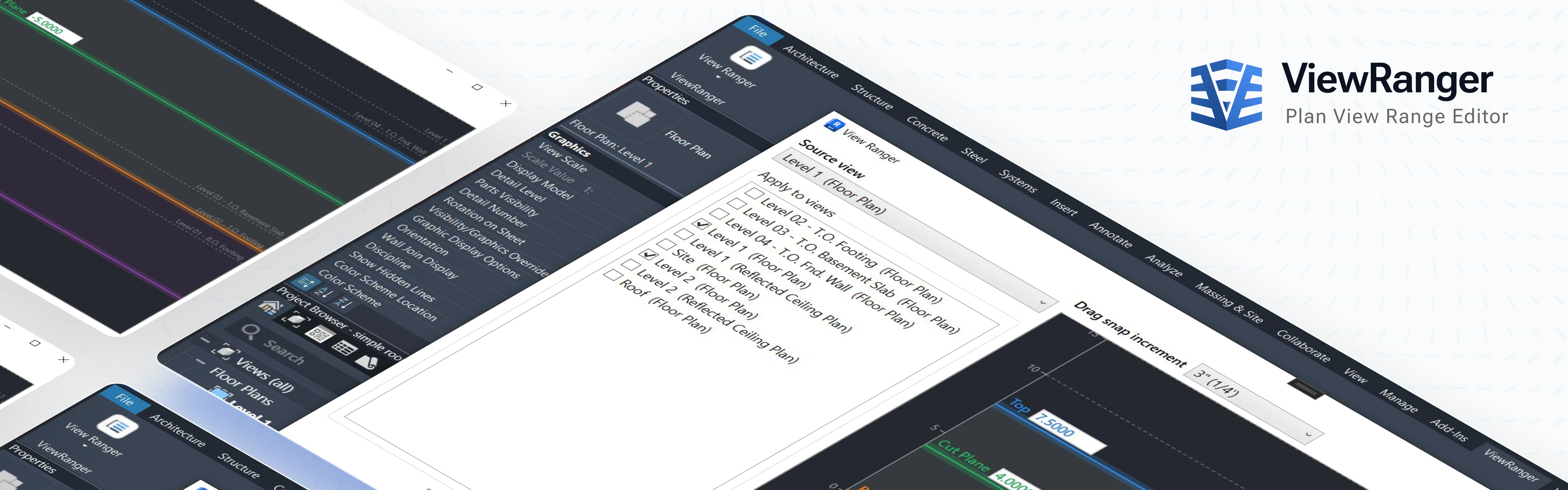

ViewRanger is a Revit plugin that makes plan view ranges easier to understand and adjust. Instead of working through a small numeric dialog, you can see the full view range in context, move the planes visually, and apply changes to multiple views at once.
What is ViewRanger
See DemoViewRanger is a visual editor for Revit plan view ranges. It replaces the standard offset-based dialog with a clearer, more direct way to work.
You can see the Top, Cut Plane, Bottom, and View Depth relative to your model levels, adjust them by dragging or entering precise values, and apply the same change across multiple plan views in one step.
Who Benefits
02. Engineers:
- Review cut plane and depth settings with clearer level context.
- Reduce mistakes caused by abstract numeric offsets.
- Keep structural or discipline-specific plan views aligned more efficiently.
See ViewRanger in action
See how ViewRanger makes Revit plan view ranges easier to understand, adjust, and apply across multiple views.
Why ViewRanger is Superior
Faster Way to Update Plan Views
Replace repeated dialog edits with a direct visual workflow that helps you make changes faster and with more confidence.
Clearer View Range Decisions
ViewRanger shows the view range planes against actual levels, making it easier to understand the result before applying changes.
Consistent Drawings Across Views
Apply the same relative adjustment to multiple plan views to keep drawing sets aligned and easier to manage.
Core Capabilities
Visual view range editing
Drag the color-coded Top, Cut Plane, Bottom, and View Depth lines, or type precise elevations into the on-line value boxes.
See your edit in context
A schematic elevation ruler and labeled level datums show exactly where each plane falls, while dashed "ghost" lines mark the original range so you can compare before and after at a glance.
Apply to multiple views
Adjust one level, then push the same relative change to every plan view you check, so a whole set of floor plans stays consistent without repeating the work.
Work the way your drawings are set up
ViewRanger understands floor plans, reflected ceiling plans, structural plans, and area plans, and it adapts the view-depth relationship correctly for upward-looking reflected ceiling plans.
Automatic validation
When a change would push the view depth past the bottom of the range, ViewRanger carries it along so the result is always a legal Revit view range.
Snap controls while dragging
Choose an architectural snap increment for clean, predictable adjustments, or turn snapping off for free-form control.
Typical Workflow
Open the source plan view
Select the floor plan, reflected ceiling plan, structural plan, or area plan you want to adjust.
Review the current range visually
See Top, Cut Plane, Bottom, and View Depth displayed against surrounding levels instead of working only from offsets.
Adjust the planes directly
Drag the color-coded lines or type exact values to set the range the way you need.
Choose additional views to update
Select other plan views that should receive the same relative change.
Apply and keep working
Apply the update immediately and continue working with a valid, consistent view range setup.
Get ViewRanger
A free tool for easier view range editing
Freemium
Free
For Revit users who want a clearer and faster way to edit plan view ranges.
- Visual editor for plan view ranges
- Apply changes to multiple views
- Support for multiple plan types
- Multi-language interface
- Community support
Pair ViewRanger with ViewSync
Recommended companion tool
Easily synchronize view ranges, scope boxes, and viewports across multiple sheets and floor levels. Eliminate repetitive manual setup and ensure complete drawing consistency.
Ready to Make View Range Editing Easier?
Use ViewRanger to replace guesswork with a clearer, more visual way to set plan view ranges in Revit.
